| Product Name | Smart temperature thermometer scanner | Product Type | KU07 |

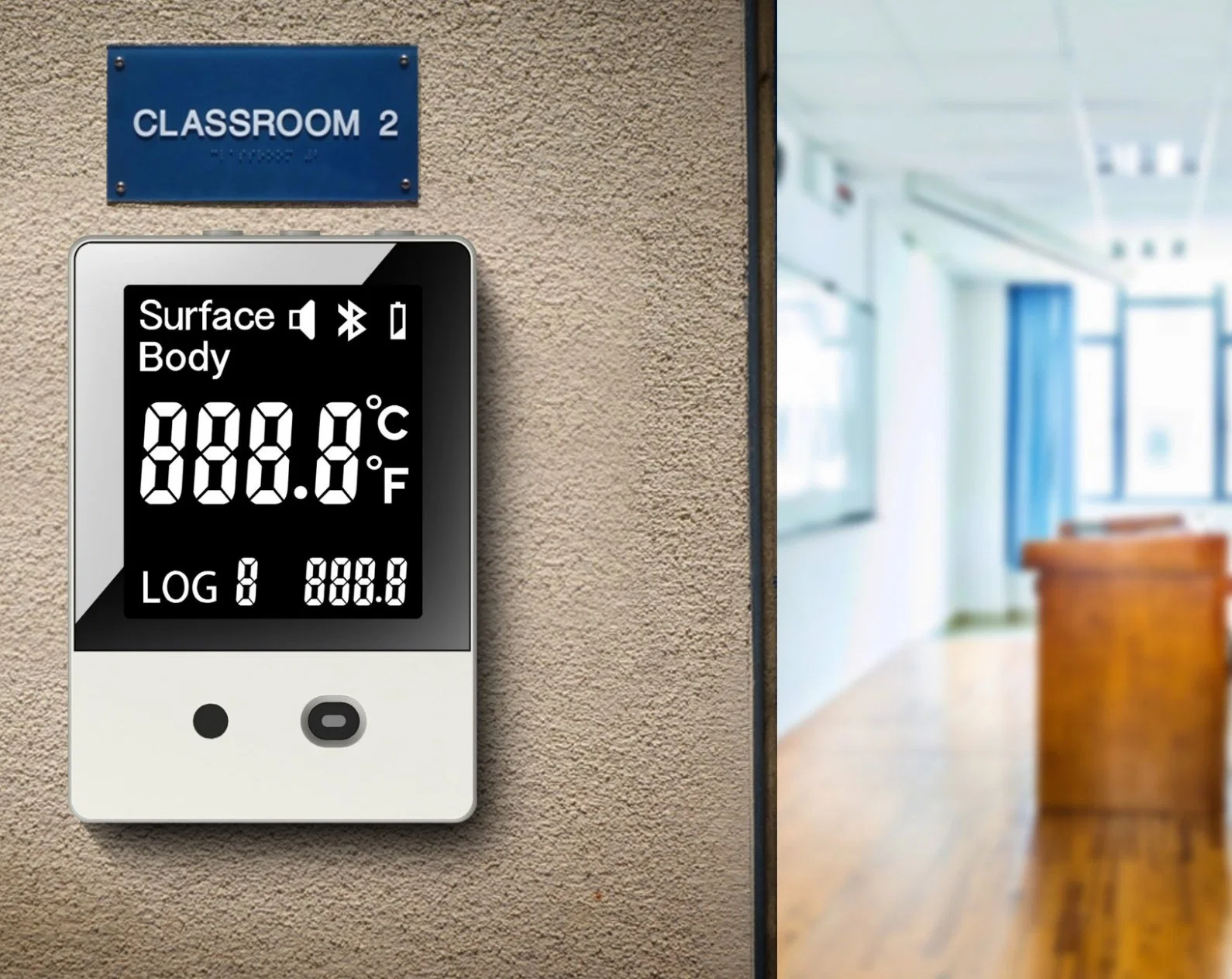

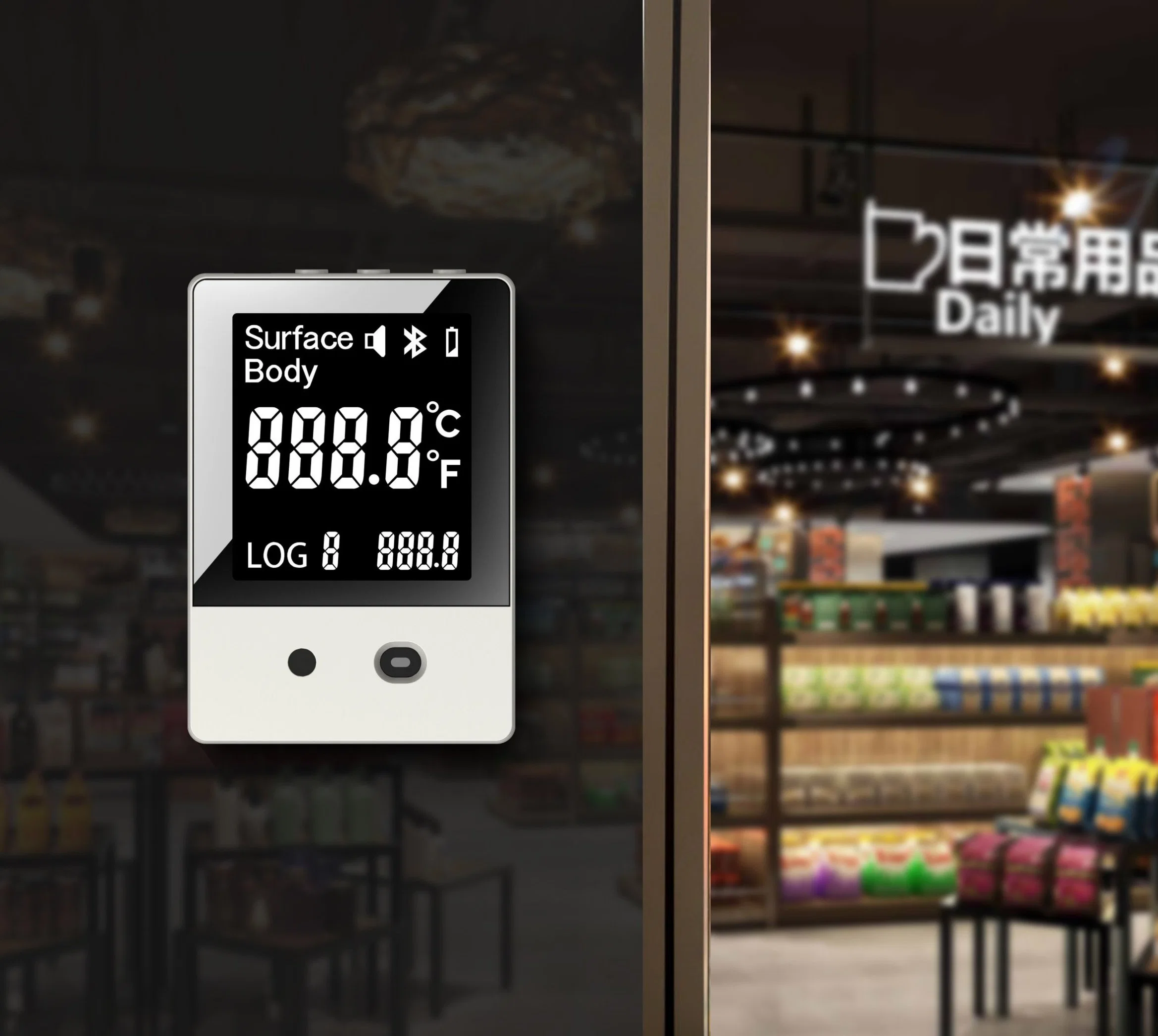

| Application | School Super Market Station Public Area | ||
| Specification |
| ||
| Item | Parameter Characteristics | Data |
| 1 | CPU | HC32L136K8TA-LQ64 |
| 2 | ROM | 64K |
| 3 | LCD | 3 inch |
| 4 | Infrared sensor | support |
| 5 | Non touch sensor | support |
| 6 | Temperature Test Rang | 34-42.9ºC(Human body) 0-60ºC(Object) |
| 7 | Accuracy | ±0.2ºC |
| 8 | Test precision | 0.1ºC |
| 9 | Non-Contact | 1~30cm |
| 10 | Response time | ≤2s |
| 11 | Working Environment | Working Environment:1.0ºC-46.0ºC ,Relative hnmidity:≤85%;Atmospheric pressure:860hPa-1060hPa |
| 12 | Power | Output 5Vpower,type-c |
| 13 | size | 114*79*27mm |
| 14 | weight | 115g |
| 15 | Power key | Power on/off |
| 16 | Switch key | Switch degree and Fahrenheit |
| 17 | Search key | Check the memory data |
| 18 | 3 Colors Display | Below 37.3ºC Green,37.4~37.9ºCYellow, Above 38ºC Red |
| 19 | Voice broadcast | Chinese,Franch,English,Spanish,German,Portugal,Russian,Italy,Korean,Japanese |
| 20 | Fever Alarm | Body mode:the temperature over the setting temperature,it will Alarm |
| Parts List | ||
| Serial No. | Parts Name | Quantity |
| 1 | KU07 | 1 pcs |
| 2 | TYPE C USB | 1 pcs |
| 3 | Holder | 1 pcs |
Certification
